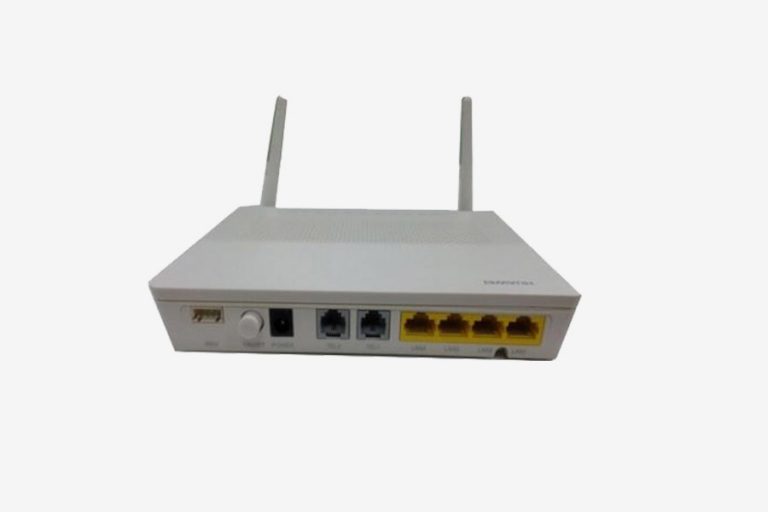

Huawei Gpon Modem

KES7,499

Huawei HG8245H 4 GE port and 2 POTS port wifi gpon ont

The HG8245H, an optical network terminal (ONT), is a high-end home gateway in FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The HG8245H provides two POTS ports, four GE auto-adapting Ethernet ports and one Wi-Fi port. The HG8245H features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the HG8245H provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.



Description



GPON
Port
•  Class B+
•  Receiver sensitivity: -27dBm
•  Wavelengths: US 1310nm, DS 1490nm
•  WBF
•  Flexible mapping between GEM Port and TCONT
•  GPON: consistent with the SN or password
authentication defined in G.984.3
•  Bi-directional FEC
•  SR-DBA and NSR-DBA
Ethernet
Port
•  Ethernet port-based VLAN tags and tag removal
•  1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
•  QinQ VLAN
•  Limit on the number of learned MAC addresses
•  MAC address learning
POTS
Port
•  Maximum REN: 4
•  G.711A/μ, G.729a/b, and G.722 encoding/decoding
•  T.30/T.38/G.711 fax mode
•  DTMF
•  Emergency calls (with the SIP protocol)
USB
Port
•  USB2.0
•  FTP-based network storage
WLAN •  IEEE 802.11 b/g/n
•  2 x 2 MIMO
•  Antenna gain: 2 dBi
•  WMM
•  Multiple SSIDs
•  WPS



Technical items Descriptions
Chipsets MTK or BCM
Optical interface 1 GPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps

Optical Wavelength

Tx 1310nm, Rx 1490nm

Optical interface SC/PC
RX sensitivity < -25dBm @ 1490nm
WLAN Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R

one internal antenna and one external antenna

WLAN throughput 100Mbps @ 40users, 1518bytes, no-encryption

107Mbps @ 40users, 512bytes, encryption

LAN interface 4*10/100Mbps

Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors

Router throughput Upstream: >390Mbps @ 1518bytes, Downstream: >390Mbps @ 1522bytes
POTS interface 2 FXS, RJ11 connectors
Indicators 14 indicators
DC power supply +12V@1A, external AC-DC power adaptor
Button RST, Power, WiFi, WPS, Pair
Power consumption ≤ 10W
Operating condition Operating temp: -5 ~ +55°C,Operating humidity: 10~90% (non-condensed)
Storing condition Storing temp: -30 ~ +60°C,Storing humidity:10~90%(non-condensed)
Dimension 205mm*138mm*50mm(length*width*height)
Net weight 0.4Kg

GPON features

  • Class B+ optical module
  • Secure authentication mode: SN, password or SN+password
  • Upstream/downstream FEC

Voice features

  • SIP or H.248 protocols
  • Media stream and signaling stream separation

Multicast features

  • IGMP V2&V3 Snooping
  • GMP Proxy

Wi-Fi features

  • 802.11b/g/n certified by the Wi-Fi Alliance

Routing features

  • 8 WAN interfaces
  • NAT function
  • Internet, IPTV and VoIP services are automatically bound to ONT ports
  • Virtual Server, Port Trigger

DMZ and DDNS

  • Security features
  • SMAC/IP/URL filter
  • Anti-DOS Attack

IPv6 features(for HSI and IPTV)

  • IPv6/IPv4 dual stack
  • DS-Lite
  • MLD snooping

Maintenance features

  • Web local management
  • Remote management through OMCI
  • Remote management through TR069
  • Optical power monitoring
  • Loop-line test of POTS ports
  • Call emulation
  • PPPoE dialup emulation
  • DHCP emulation

Reliability features

  • Dual systems for software protection
  • Rogue ONT detection
  • Lithium battery backup and backup battery monitoring

Green energy-saving features

  • Dynamic power consumption adjustment
  • With a backup battery, the guaranteed services can be selected flexibly
